Accessories
Gather, distribute, and manage digital signage content easily with our iCOMPEL® Digital Signage platform.
Ideal for both small- and medium-size offices, the iCOMPEL appliances work right out of the box with all software preinstalled—and no recurring licensing fees to deal with later. Plus software updates are free for a lower cost of ownership.
Supported Media
Because iCOMPEL supports many media formats, you can combine video with scrolling text, photos, Flash, and Web content and many more formats for professional and impressive Digital Signage.
- Video: H.265, MPEG-1, MPEG-2, MPEG-4 (ASP and AVC), QuickTime®, WMV 9, video cropping
- Animation:HTML (with JavaScript), HTML cropping and zoom, HTML
- Images:JPEG, TIFF, GIF, PNG, BMP
- Audio: MPEG-1 (layers 1, 2, and 3), MPEG-2 (AAC), MPEG-4 (AAC), AC3, MP3, WAV
- Text: multiple fonts, speeds, colours, and directions. RSS newsfeeds
Internet: HTML (web pages), RSS feeds (with multilingual support), XML files
Streaming: Optional IP video stream-in licence, MPEG/UDP
Easy to set up and play media
iCOMPEL is also easy to use, giving you the flexibility to create attention-getting digital signage without a lot of creative or technical know-how. Even better, iCOMPEL is easy to integrate; it won't cause IT and security headaches when added to your network.
Setup is easy. To get started, you simply connect the iCOMPEL unit to your network and to a display. After booting up, the iCOMPEL unit automatically obtains an IP address from the network. Fixed IP addresses can also be set.
Now, it's time to get creative using the software on the iCOMPEL media player. Begin by dragging and dropping media from your computer desktop or a folder to the iCOMPEL media folders on the hard disk or use its intuitive interface to browse for files.
The software included on the device enables you to set up one or more screen layouts containing one or multiple zones for display. Every zone in the display layout has its own playlist, to which you can add multiple media files. Each playlist runs in a continuous loop per a preset schedule. Different layouts can be scheduled to play at different times of the day.
Security
A built-in firewall keeps access limited to authorized users only, and there's no need to install any third-party software or virus protection. iCOMPEL uses HTTP and HTTPS security protocols, and supports the LDAP authentication protocol and VPN capabilities for secure remote access.
Easy Scaleable
Scaling from a standalone installation to a multichannel network with many screens is a matter of simply adding more iCOMPEL units to your IT network configuration. Use the iCOMPEL Content Commander – our multi-user, multi-channel CMS for centralized control and monitoring if mixed Digital Signage networks.
Your iCOMPEL Choices
Media Players:
- ICPS-series, our highest-performing version for video-intensive signage such as video walls up to 4K
- ICQS-series, fanless mid-range media playersr for impressive attention- getting HD Digital Signage with touch interactivity.
- ICSS-series, Standard media player with touch interactivity, ideal for stores, reception desks and menue boards
- ICVx-VE-series, budget media players with multiple zone support for cost- sensitive applications and areas with airborne conatinments
- ICVx-VL-series, entry-level media player for basic content in max. four zones, ideal for samller retail and hospitality Digital Signage or Info-Screens on factory floors.
- ICRP-series, budget single –zone player for retail & quick service restaurants
- ICVO-series, OPS-compatible media players for public environments where an internal player is best.
System on Chip:
- ICC-SOC-Single: Software-based Digital Signage for Display with single-zone content
- ICC-SOC-Multi: Software-based Digital Signage for Display with multi-zone content
Management
- ICC-Lite: Content Management Server Lite for Digital Signage with up to 25 screens
- ICC-AP Content Commander: Multi-user, multi-channel content server and software to manage your iCOMPEL or mixed network digital signage systems.
- ICC-VM: Content Commander as software for Virtual Machines
Extras
- Serial interface: USB to RS-232 Adapter (ICOMP-GPIO)
- Touch Capability License - Playlist control and HTML/Flash content interaction (ICOMP-TOUCH)
- IR Remote Control (ICOMP-RC)

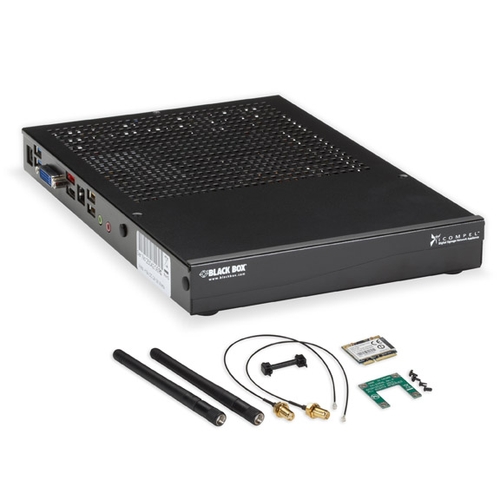

- Options with dual band WiFi access (item numbers ending on –W available for nearly all media players)
- Video Streaming Client for MPEG/UDP/IP/Ethernet (Multicast) (ICOMP-IN)
- Stream out license – Digital TV Re-Broadcast Server, UDP Multicast to a local area network (iCOMP-OUT)
Not sure if this platform is right for your business or organization? Please call us. We’ll discuss your current and anticipated future signage needs, and recommend an iCOMPEL solution for you.
CPU Processor — Intel® Core™ i3
System RAM — 8 GB
System Storage — 128 GB SSD
Video Output Resolution —
Digital to 1920 x 1080;
HD to 1080p;
HDMI to UHD at 30fps;
DisplayPort and streaming sources to 3840x2160 (UHD) at 60fps
Supported Zones —
unlimited with one 4K or two HD video zones
Supported Media —
Video: H.265, MPEG-1, MPEG-2, MPEG-4 (ASP and AVC), QuickTime®, WMV 9, video cropping
Animation: HTML (with JavaScript), HTML cropping and zoom, HTML
Images: JPEG, TIFF, GIF, PNG, BMP
Audio: MPEG-1 (layers 1, 2, and 3), MPEG-2 (AAC), MPEG-4 (AAC), AC3, MP3, WAV
Text: multiple fonts, speeds, colours, and directions. RSS newsfeeds
Internet: HTML (web pages), RSS feeds (with multilingual support), XML files
Streaming: Optional IP video stream-in licence, MPEG/UDP
Clocks: Digital (multilingual and localizable date and time formats)
Connectors —
Video: (1) HDMI F; (1) DisplayPort F
Audio: (2) 3.5-mm jack and HDMI;
USB: (2) USB 2.0, (2) USB 3.0
Ethernet: (1) RJ-45 (10/100/1000 Mbps)
RS232: with optional iCOMP-GPIO adapter
Wireless: internal PCIe card supporting 802.11a/b/g/n access (Wifi-option only)
Cooling — Passive (fanless)
Power — 24.6W (typical consumption) supplied by 19V DC external power supply
Operating Temperature — 0 to 40° C
Size — 3.7H x 22W x 15D cm
Weight — 1.925 kg
Mounting — Optional Screen Mounting Plate
TAA compliant — YES
|
