VDSL2 PoE Ethernet Extender Kit, PSE

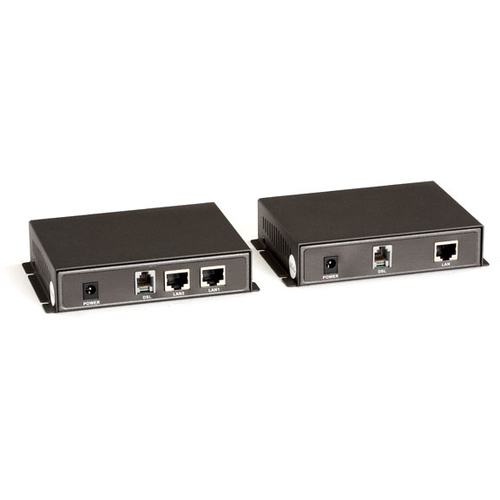

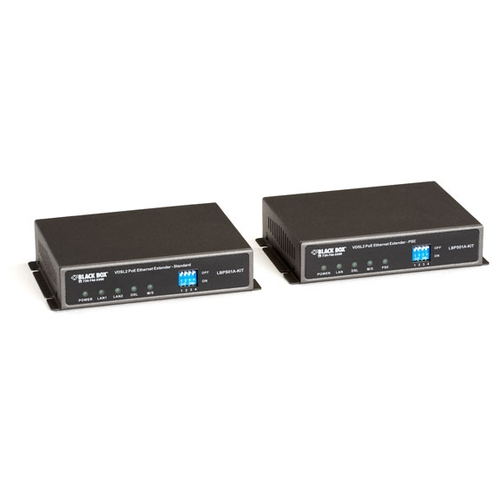

Photo may vary from actual product
LBPS01A-KIT: Kit, 2 wires, 60Mbps, 48 VDC


VDSL2 PoE Ethernet Extender Kit, PSE


Integrate this Ethernet extender into your PoE network.


  • Kit includes two extenders—one of which acts as PoE power source equipment (PSE), the other is a standard extender.
  • Extends 10BASE-T/100BASE-TX Ethernet across ordinary voice-grade copper wire.

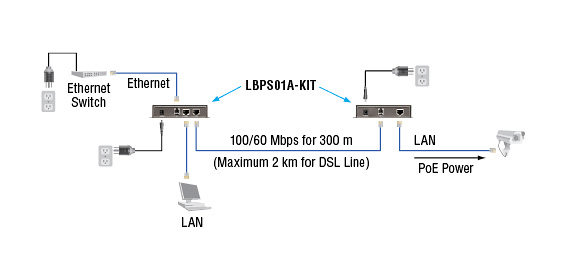

  • Supports 100-Mbps downstream and 60-Mbps upstream for distances up to 150 m.
  • Supports distances of up to 1200 m at 28/0.3 Mbps.
  • Autosensing, autonegotiating 10-/100-Mbps Ethernet port.
  • Auto MDI/MDI-X means you never need a crossover cable on the Ethernet side.
  • DIP switches for master/slave configuration.
  • Low latency for video and voice applications.
  • Warranty: 2-years

  Product       Code   Unit price   Quantity
Kit
2 wires
60Mbps

48 VDC
  VDSL2 PoE Ethernet Extender Kit, PSE
VDSL2 PoE Ethernet Extender Kit, PSE
  LBPS01A-KIT
On request
